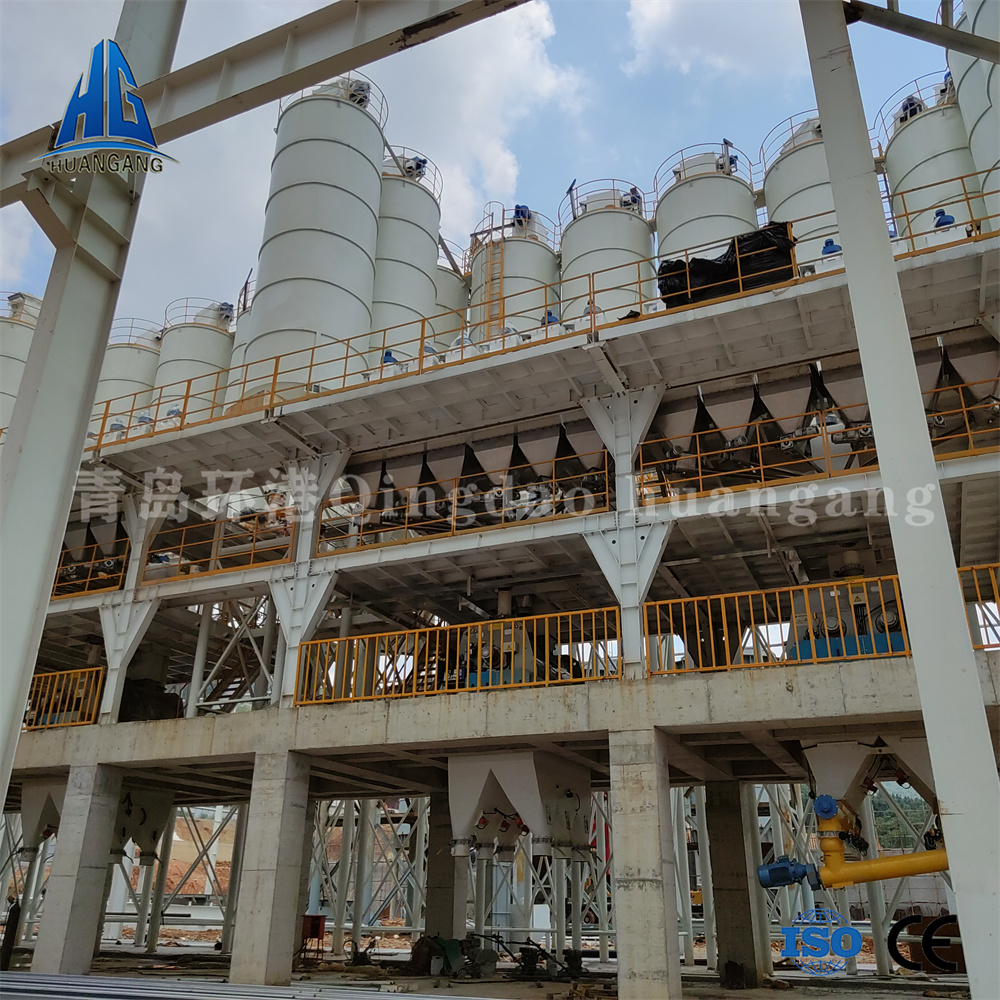

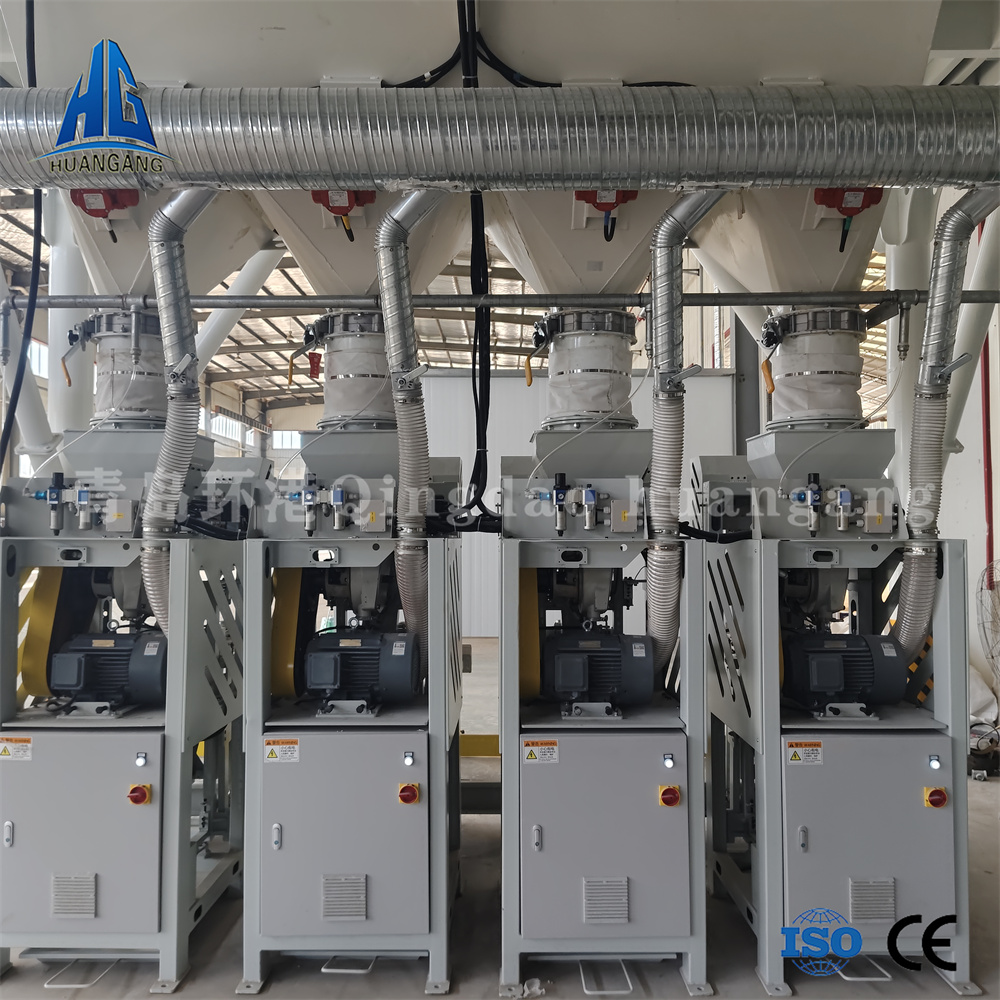

The mortar production line produced by the dry powder mortar equipment manufacturer can be combined with the sand-making system or the wet sand drying system to be used for the production of various dry powder mortar and special mortar products. Depending on the selected model, different tonnage of mortar can be produced per hour. The main building of the production line adopts a tower structure and a stepped design. The powder silo of the tower-type production line is installed on the top of the main building. The admixture system adopts an independent platform automatic metering and pumping system or an upper-mounted admixture automatic metering system. The aggregates pass through the metering layer, the mixer layer, the finished product silo, the control room, the bulk loader and the packaging machine from top to bottom. The mortar production line produced by the dry powder mortar equipment manufacturer can be combined with the sand-making system or the wet sand drying system to be used for the production of various dry powder mortar and special mortar products. Depending on the selected model, different tonnage of mortar can be produced per hour. The main building of the production line adopts a tower structure and a stepped design. The powder silo of the tower-type production line is installed on the top of the main building. The admixture system adopts an independent platform automatic metering and pumping system or an upper-mounted admixture automatic metering system. The aggregates pass through the metering layer, the mixer layer, the finished product silo, the control room, the bulk loader and the packaging machine from top to bottom.

High-performance hybrid system
The mixing and stirring system is a crucial link in the production of dry-mixed mortar and also the "heart" of the factory. Huan Gang Heavy Industry's dry-mixed mortar production is equipped with pure international standard mixing and stirring machines. The mixing uniformity is suitable, the mixing time is controllable, and it has excellent repeatability and low maintenance rate. It can be equipped with high-speed flying knives, and the blades can be opened according to the working conditions to achieve the mixing and dispersion of fibers and pigments.

Accurate measurement system
The accuracy and efficiency of measurement are crucial for products. For granular and raw materials with poor fluidity, the measurement system using proprietary technology can achieve rapid and accurate automatic measurement. The measurement system is mainly divided into two parts: raw material measurement and admixture measurement. Huan Gang Heavy Industry uses well-known metrological components to ensure the accuracy of our metrological system.

A mortar production line with an annual output of about 20,000 tons usually uses 3 to 6 raw material tanks. Among them, two large tanks are used to hold bulk cement and fly ash, while the remaining small tanks are used to hold light calcium, heavy calcium, sand, etc. Bulk cement and fly ash can be pumped into tanks without lifting equipment, relying on pump trucks. Bulk fly ash silos are generally of cylindrical support structure. The upper part is equipped with dust removal equipment to prevent dust leakage, and the lower part is fitted with an arch-breaking device to prevent powder from caking and ensure smooth powder discharge. It is also equipped with a material level sensing device to monitor the usage of materials in the silo at any time.

Relying on a strong R&D and design team and mature design concepts, Huan Gang Equipment optimizes the process flow based on the customer's product formula and investment plan, and tailors products to provide customers with cost-effective product solutions. From investment analysis, market segmentation, equipment selection, after-sales installation, personnel training, maintenance and repair, to formula support, we offer a one-stop meticulous service. The procurement of high-quality global components ensures the stable operation of your equipment.
